產品信息

Cable shielding電纜屏蔽

商品名稱：4700 & 4800 Select a cable shielding選擇一個電纜屏蔽

商品編號：

市場價格：￥

本站價格：￥

詳細信息

Please select a cable shield請選擇一個電纜屏蔽:

Ready made sleeve預先制成的屏蔽 4700S	Flexible cable shield軟電纜屏蔽 4700R	Wrapshield纏繞屏蔽帶 4730-4760	Flexible shielding tube軟屏蔽管 4800

Part numbers零件號 High shielding performace高的屏蔽效能 Ready made預先制成的 Large diameters and flat cables大直徑和扁平電纜	Benefits益處 Highly flexible高度柔性的 Easy to cut容易切割 Wide range of applications寬范圍的應用	Properties性能 Flame retardant version阻燃劑版 With self-adhesive backing帶自粘的背襯 Customer-specific widths客戶特殊的寬度	Benefits益處 Highly flexible高度柔性的 High shielding performance高的屏蔽性能 Easy to cut容易剪切

Cable shielding 4700/4800電纜屏蔽
For flat and round cables, can be installed afterward用于扁平的和圓形電纜，能在過后安裝

Cable shielding電纜屏蔽
The cable shield can be grounded at one end, or both ends of the cable. Cable shielding can be supplied as a ready-made sleeve, on rolls or as a flexible shielding tube. It comes either in continuous lengths, on a reel or cut into lengths.
電纜屏蔽能被在電纜的一端或兩端都接地。電纜屏蔽能作為預先制成的屏蔽被供應，在一個卷軸上或作為一個軟的屏蔽管。它的供應或者以連續的長度在一個卷軸上或者切割成規定的長度。
Ready-made sleeve預先制成的屏蔽
Ready-made sleeves can be supplied in Amucor or in Conductive fabric. The material provides a high shielding performance. The ready-made sleeve is used for cables with large diameters and flat cables.
預先制成的套管的供應以Amucor或以Conductive fabric導電織物。該材料提供了一個高的屏蔽性能。預先制成的屏蔽被用于大直徑的電纜和扁平電纜。
Can be produced with a self-adhesive backing.
能生產帶背面自粘的。

Flexible cable shield軟的電纜屏蔽
For applications where flexibility is required, e.g. cables with small diameters. The material guarantees superb shielding performance. The product is supplied on rolls and is wrapped around the cable. Flexible cable shield can be delivered in Amucor or in Conductive fabric, with or without (conductive) self-adhesive.
對于小直徑等的電纜需要軟的電纜屏蔽。材料確保極好的屏蔽性能。產品的供應在卷軸上，圍繞電纜纏繞。軟的電纜屏蔽的交貨能以Amucor 或以Conductive fabric導電織物，有或沒有（導電）自粘。
Options選件
• With or without self-adhesive有或沒有自粘
• Supplied on rolls供貨在卷軸上
Benefits好處
• Can be applied if the cable is a plug能被應用如果電纜是一個插座
• Highly flexible高度柔軟
• Branches can be wrapped separately分支能被分別的纏繞

Shielding performance屏蔽性能

Frequency Hz頻率	Mode模式	Attenuation (dB)衰減
Frequency Hz頻率	Mode模式	Amucor	Conductive fabric導電織物	Wrapshield纏繞屏蔽帶	Shielding tube屏蔽管
10K	H	-	-	4	10
100K	H	-	-	12	14
1M	H	-	-	18	21
1M	E	121	115	72	121
10M	E	110	108	65	110
100M	E	103	102	62	103
400M	E	98	92	60	98
1G	P	93	90	58	93
10G	P	90	87	42	90
See guarantee

Wrapshield纏繞屏蔽帶
Cable wrapping is used to shield, ground and statically discharge cables or to harness entire bundles of cables.
電纜纏繞被用于屏蔽，接地和靜電放電電纜或用于整個電纜束。
Wrapshield is a double layer knitted wire mesh supplied on rolls used to wrap around cables. For the best shielding performance make sure there is 50% overlap.
纏繞屏蔽帶是一個雙層編織金屬絲網，供貨以卷軸形式，用于纏繞電纜。為了達到最好的屏蔽性能確信有50%的重疊。
Benefits好處
• Highly flexible高度柔軟
• High shielding performance高屏蔽性能
• Wide range of applications寬范圍的應用
• Shielding performance can be increased by more overlap通過更多的重疊屏蔽性能能被增加
• One size for all diameters一個尺寸用于多有的直徑
• Branches can be wrapped分支能被纏繞

Flexible shielding tube軟屏蔽管
This material is a ready-to-use Mu-copper or tinned Mu-copper tube through which a cable or bundle of cables can be pulled. When the tube is compressed lengthwise, the diameter expands to simplify the assembly. Therefore a wide range of cable diameters can be shielded with a single tube.
這個材料是一個鉬銅或鍍錫鉬銅管通過它一個電纜或電纜束能被拉過來。當管子被縱向壓縮時，直徑被擴展以簡化裝配。因此用一個單管一個寬范圍直徑的電纜能被屏蔽。
Please note that the tube has to be expanded for larger diameters and that a larger nominal length will then be required (up to twice the length of the cable).
請注意管子能被擴展用于更大的直徑，因此一個更大的標稱長度將是需要的（直到兩倍的電纜長度）。
Benefits好處
• Highly flexible高度柔軟
• High shielding performance高屏蔽性能
• Wide range of applications寬范圍的應用
• Easy to cut容易切割
• Useful in a broad range of temperatures and environments.可用于寬范圍的溫度和環境。

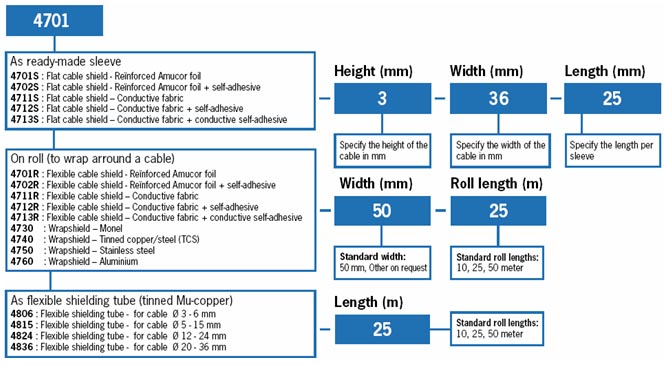

Part number零件號

4701
As ready-made sleeve作為預先制成的套管 4701S : Flat cable shield扁平電纜屏蔽 - Reïnforced Amucor foil薄片 4702S : Flat cable shield扁平電纜屏蔽 - Reïnforced Amucor foil薄片 + self-adhesive自粘 4711S : Flat cable shield扁平電纜屏蔽 – Conductive fabric導電織物 4712S : Flat cable shield扁平電纜屏蔽 – Conductive fabric導電織物 + self-adhesive自粘 4713S : Flat cable shield扁平電纜屏蔽 – Conductive fabric導電織物 + conductive self-adhesive導電自粘	Height (mm)	Width (mm)	Length (mm)
	3	36	25
	Specify the height of the cable in mm 用mm指定電纜長度	Specify the width of the cable in mm 用mm指定電纜長度	Specify the length per Sleeve 直到每個套管的長度

On roll在卷軸上 (to wrap arround a cable用于纏繞電纜) 4701R : Flexible cable shield軟電纜屏蔽 - Reïnforced Amucor foil薄片 4702R : Flexible cable shield軟電纜屏蔽 - Reïnforced Amucor foil薄片 + self-adhesive自粘 4711R : Flexible cable shield軟電纜屏蔽 – Conductive fabric導電織物 4712R : Flexible cable shield軟電纜屏蔽 – Conductive fabric導電織物 + self-adhesive自粘 4713R : Flexible cable shield軟電纜屏蔽 – Conductive fabric導電織物 + conductive self-adhesive導電自粘 4730 : Wrapshield纏繞屏蔽帶 – Monel蒙乃爾銅-鎳合金 4740 : Wrapshield纏繞屏蔽帶 – Tinned copper/steel (TCS)鍍錫銅/鋼 4750 : Wrapshield纏繞屏蔽帶 – Stainless steel不銹鋼 4760 : Wrapshield纏繞屏蔽帶 – Aluminium鋁	Width寬度 (mm)	Roll length卷長度 (m)
	50	25
	Standard width標準寬度: 50 mm, Other on request其它的根據需求	Standard roll lengths標準卷長度: 10, 25, 50 meter

As flexible shielding tube軟屏蔽管 (tinned Mu-copper鍍錫鉬銅) 4806 : Flexible shielding tube軟屏蔽管 - for cable用于電纜 Ø 3 - 6 mm 4815 : Flexible shielding tube軟屏蔽管 - for cable用于電纜 Ø 5 - 15 mm 4824 : Flexible shielding tube軟屏蔽管 - for cable用于電纜 Ø 12 - 24 mm 4836 : Flexible shielding tube軟屏蔽管 - for cable用于電纜 Ø 20 - 36 mm	Length長度 (m)
	25	Standard roll lengths標準一卷長度: 10, 25, 50 meter
