V-shape gasket 8700 V形墊圈

For doors, extremely low closure force 用于門，非常低的閉合力

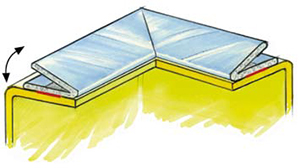

The 8700 series V-shape gaskets are characterised by a very large compression range and low closure force. They come with a self-adhesive strip for easy mounting. The most common version is with conductive Nickel over Copper textile (T). The version with highly conductive Amucor foil (A) is designed especially for a combination with aluminum and zinc plated steel. To prevent loss of material and for easy shipping we can cut exact lengths. Maximum lengths 2.5 meter.

8700系列V形墊圈是非常有特點的，具有一個非常大的壓縮范圍和低的閉合力。它們可一起供應一個自粘條為了便于裝配。最通用的版本是在銅織物的上面帶有導電鎳。帶有高導電性的Amucor薄片的版本特別設計用于有鋁和鋅鋼板的組合。以保護材料的損耗和為了方便運輸我們能切成精確的長度，最大長度為2.5米。

Also available with a resilient foam rubber insert (i) for more compression just at the moment of closing.

而且可獲得帶有一個彈力泡沫橡膠墊用于在閉合上有更多的壓縮。

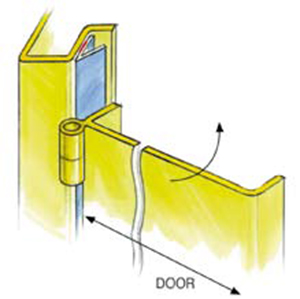

The 8700 series is flame retardant, which can be supplied in a UL94V-0 compliant version. If applied as shown in Fig. 3, excellent shielding can be achieved without any permanent closure force. This construction prevents bending of doors, so the enclosure can be less rigid. Also for hinges and locks.

8700系列是阻燃劑的，能被供應以一個UL94V-0符合性的版本。圖片3里顯示為應用情況，卓越的屏蔽能被實現沒有任何固定的閉合力。這個結構防止門的彎曲，因此殼體能更少的不彎曲。而且用于小五金和鎖。

Shielding performance屏蔽性能

Standard dimensions標準尺寸
(Bold itemst are stock items黑體項目是存貨項目)

Benefits好處

1. Self-adhesive 自粘
2. Easy to fit 容易裝配
3. Allows large tolerances 允許大的公差
4. High shielding performance 高的屏蔽性能
5. Very high deflection 非常高的彎曲度
6. Low closure force 低的閉合力

Example舉例
Part number 87107 with conductive textile and resilent insert at a lenght of 1940 mm: 87107-T-i-1940
零件號87107帶有導電織物及復原插件在長度1940mm：87107-T-i-1940
