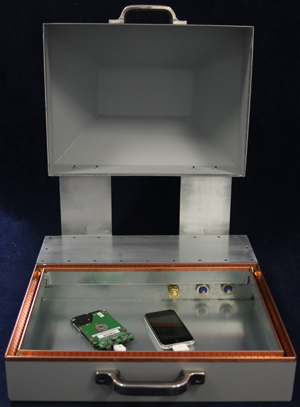

RF shielded box for wireless testing & forensics
RF屏蔽箱用于無線測試和鑒定
This RF Shielded box has up to 120dB reduction of RF signals up to 5 GHz. This makes the shielded box ideal for the testing of cellular handsets, RFID, Bluetooth, Zigbee, WiMax, WLAN or similar wireless devices. The box can be constructed in any size required.
這個RF屏蔽箱有可達120 dB的RF信號減少，頻率可達5GHz。這個使得該屏蔽箱是理想的用于測試cellular handsets蜂窩電話, RFID, Bluetooth, Zigbee, WiMax, WLAN 或類型的無線通信設備。該箱體能建造成任何需要的尺寸。
The mobility makes the box well suited for forensics when the current state of an electronic device needs to be frozen by blocking all wireless contact with the outside world.
它的機動性使得該箱體非常適合用于鑒定，此時一個電子設備的當前狀態需要被凍結，通過阻塞所有與外部的無線電聯系。
Applications應用
- Digital forensics 數字鑒定
- Wireless testing 無線電測試
- R&D 研發
- EMC Testing測試
The box can be equipped with shielded power filters for power connection in the box while still blocking all wireless signals. In addition the box can be equipped with any or all of the following options:
該箱子能裝備屏蔽的電源濾波器用于在箱子內部的電源連接，此時仍然阻塞所有的無線電信號。另外，該箱子能被裝備任何或所有的下列選件：
Options選件
- Shielded ventilation panels for heat transportation 屏蔽的通風板用于熱傳輸
- Shielded window to maintain visual contact with the devices 屏蔽窗以方便觀察設備
- Coaxial feed-throughs / Signal filters 同軸饋通/信號濾波器
- Ethernet connection以太網連接

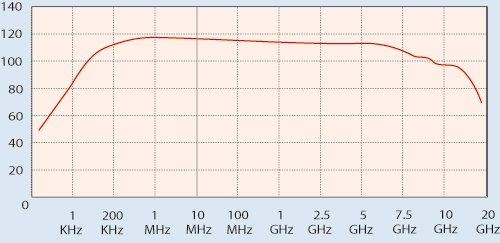

Shielding performance 屏蔽性能(dB)
